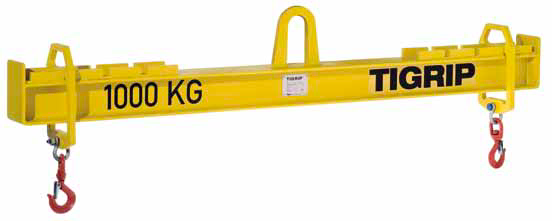

Traverza, nastavljiva, model TTS

Kapaciteta: 1000–25.000 kg

Priloge

Traverza, nastavljiva, model TTS (218,9 KB)

Za morebitne napake v Slovenskih prospektih ne odgovarjamo!

POŠLJI POVPRAŠEVANJE

Tehnični podatki, model TTS

Model	EAN-No. 4025092*	Nosilnost kg	Delovna širina Z mm	Odprtina kavlja mm	Teža kg
TTS 1,0/1500	*552646	1000	700–1500	18	40
TTS 2,0/1500	*552295	2000	700–1500	18	41
TTS 3,0/1500	*553988	3000	700–1500	21	53
TTS 5,0/1500	*551281	5000	700–1500	23	79
TTS 7,5/1500	*553995	7500	700–1500	32	98
TTS 10,0/1500	*552219	10000	700–1500	32	117
TTS 12,5/1500	*554008	12500	700–1500	40	116
TTS 15,0/1500	*554015	15000	700–1500	40	137
TTS 20,0/1500	*554022	20000	700–1500	50	180
TTS 25,0/1500	*554039	25000	700–1500	50	226
TTS 1,0/2500	*554046	1000	1500–2500	18	58
TTS 2,0/2500	*552158	2000	1500–2500	18	84
TTS 3,0/2500	*552448	3000	1500–2500	21	105
TTS 5,0/2500	*552424	5000	1500–2500	23	127
TTS 7,5/2500	*554053	7500	1500–2500	32	178
TTS 10,0/2500	*554060	10000	1500–2500	32	215
TTS 12,5/2500	*554077	12500	1500–2500	40	198
TTS 15,0/2500	*554084	15000	1500–2500	40	237
TTS 20,0/2500	*554091	20000	1500–2500	50	287
TTS 25,0/2500	*554107	25000	1500–2500	50	342
TTS 1,0/3500	*552684	1000	1700–3500	18	95
TTS 2,0/3500	*554114	2000	1700–3500	18	137
TTS 3,0/3500	*554121	3000	1700–3500	21	162
TTS 5,0/3500	*554138	5000	1700–3500	23	228
TTS 7,5/3500	*554145	7500	1700–3500	32	278
TTS 10,0/3500	*554152	10000	1700–3500	32	317
TTS 12,5/3500	*554169	12500	1700–3500	40	295
TTS 15,0/3500	*551403	15000	1700–3500	40	340
TTS 20,0/3500	*554176	20000	1700–3500	50	451
TTS 25,0/3500	*554183	25000	1700–3500	50	512
TTS 1,0/5000	*554367	1000	2000–5000	18	190
TTS 2,0/5000	*554374	2000	2000–5000	18	219
TTS 3,0/5000	*554381	3000	2000–5000	21	260
TTS 5,0/5000	*554398	5000	2000–5000	23	372
TTS 7,5/5000	*554404	7500	2000–5000	32	423
TTS 10,0/5000	*554411	10000	2000–5000	32	531
TTS 12,5/5000	*554428	12500	2000–5000	40	449
TTS 15,0/5000	*554435	15000	2000–5000	40	568
TTS 20,0/5000	*554442	20000	2000–5000	50	691
TTS 1,0/8000	*554459	1000	3000–8000	18	342
TTS 2,0/8000	*554466	2000	3000–8000	18	458
TTS 3,0/8000	*554473	3000	3000–8000	21	547
TTS 5,0/8000	*554480	5000	3000–8000	23	788
TTS 7,5/8000	*554497	7500	3000–8000	32	883
TTS 10,0/8000	*554503	10000	3000–8000	32	1319
TTS 12,5/8000	*554510	12500	3000–8000	40	979
TTS 15,0/8000	*554527	15000	3000–8000	40	1046

Dimenzije, model TTS

Model	TTS 1,0/1500	TTS 2,0/1500	TTS 3,0/1500	TTS 5,0/1500	TTS 7,5/1500	TTS 10,0/1500	TTS 12,5/1500	TTS 15,0/1500	TTS 20,0/1500	TTS 25,0/1500
B, mm	410	440	540	625	710	805	835	880	990	1200
C, mm	110	135	160	180	200	260	260	260	260	300
D, mm	25	30	35	40	60	70	75	85	90	100
E, mm	60	75	90	100	130	130	140	140	160	160

Dimenzije, model TTS

Model	TTS 1,0/2500	TTS 2,0/2500	TTS 3,0/2500	TTS 5,0/2500	TTS 7,5/2500	TTS 10,0/2500	TTS 12,5/2500	TTS 15,0/2500	TTS 20,0/2500	TTS 25,0/2500
B, mm	410	475	580	645	755	850	885	925	1030	1225
C, mm	110	135	160	180	200	260	260	260	260	300
D, mm	25	30	35	40	60	70	75	85	90	100
E, mm	60	75	90	100	130	130	140	140	160	160

Dimenzije, model TTS

Model	TTS 1,0/3500	TTS 2,0/3500	TTS 3,0/3500	TTS 5,0/3500	TTS 7,5/3500	TTS 10,0/3500	TTS 12,5/3500	TTS 15,0/3500	TTS 20,0/3500	TTS 25,0/3500
B, mm	410	500	605	685	780	875	905	950	1085	1270
C, mm	110	135	160	180	200	260	260	260	260	300
D, mm	25	30	35	40	60	70	75	85	90	100
E, mm	60	75	90	100	130	130	140	140	160	160

Dimenzije, model TTS

Model	TTS 1,0/5000	TTS 2,0/5000	TTS 3,0/5000	TTS 5,0/5000	TTS 7,5/5000	TTS 10,0/5000	TTS 12,5/5000	TTS 15,0/5000	TTS 20,0/5000
B, mm	465	520	625	710	800	920	950	995	1125
C, mm	110	135	160	180	200	260	260	260	260
D, mm	25	30	35	40	60	70	75	85	90
E, mm	60	75	90	100	130	130	140	140	160

Dimenzije, model TTS

Model	TTS 1,0/8000	TTS 2,0/8000	TTS 3,0/8000	TTS 5,0/8000	TTS 7,5/8000	TTS 10,0/8000	TTS 12,5/8000	TTS 15,0/8000
B, mm	485	560	670	755	865	980	1015	1055
C, mm	110	135	160	180	200	260	260	260
D, mm	25	30	35	40	60	70	75	85
E, mm	60	75	90	100	130	130	140	140
